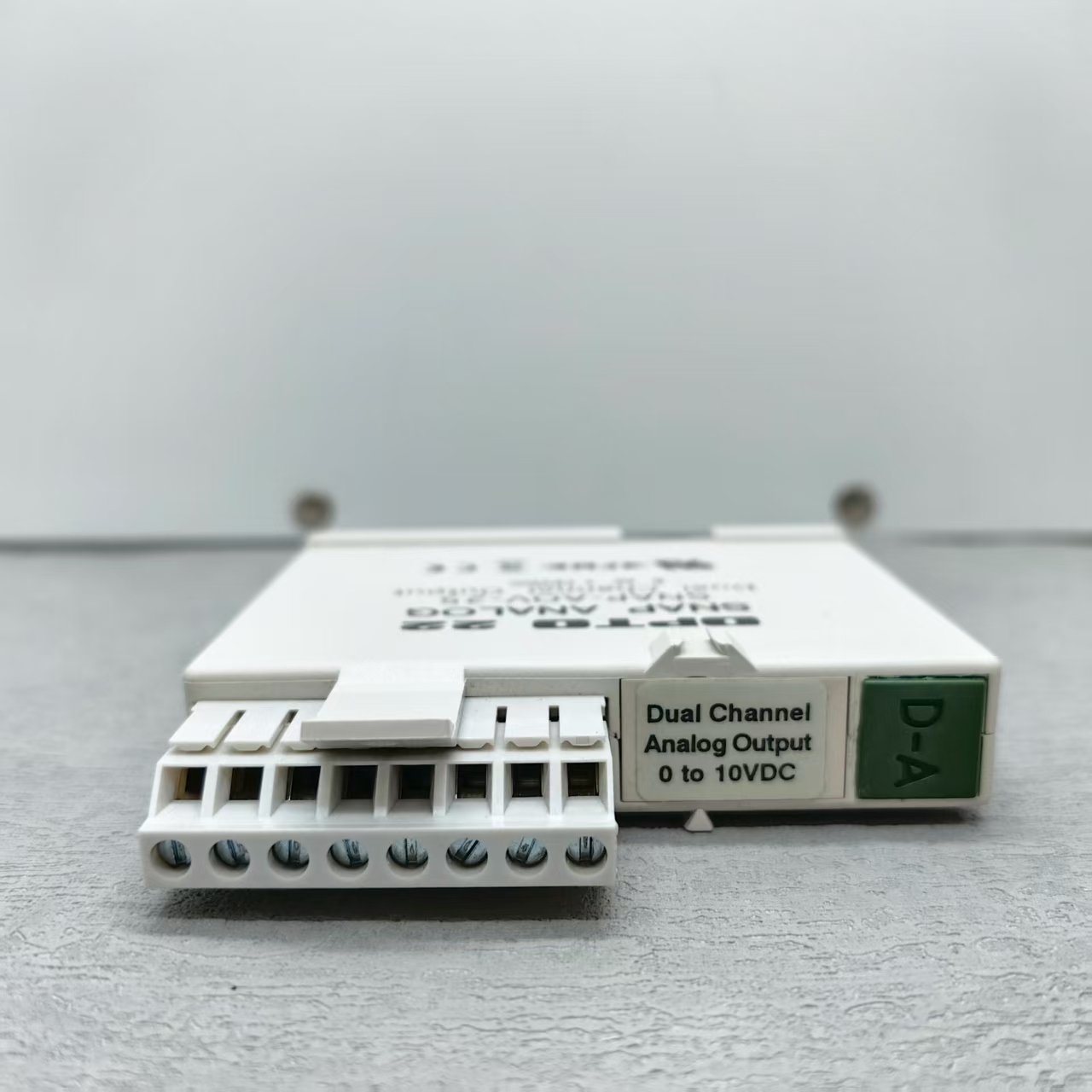

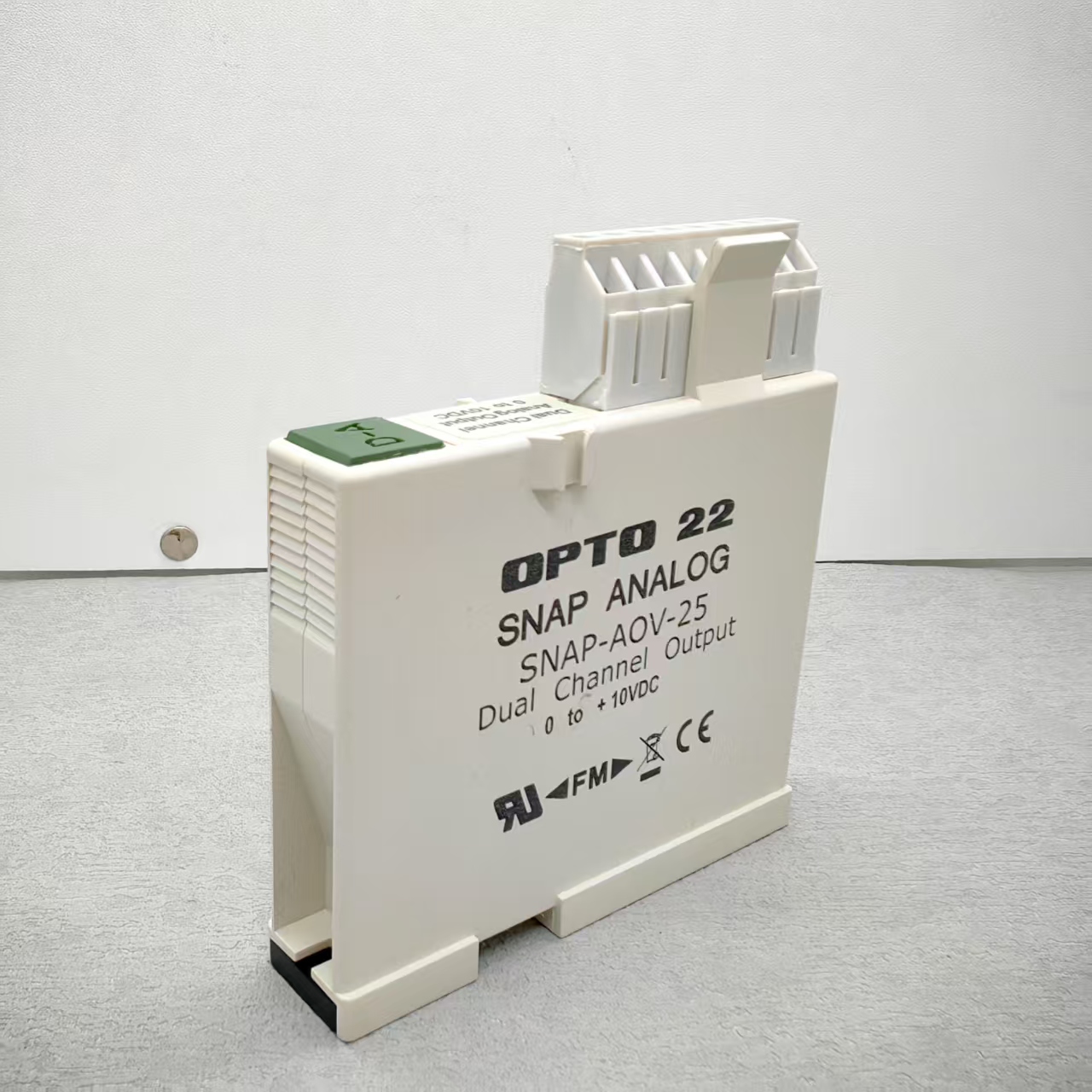

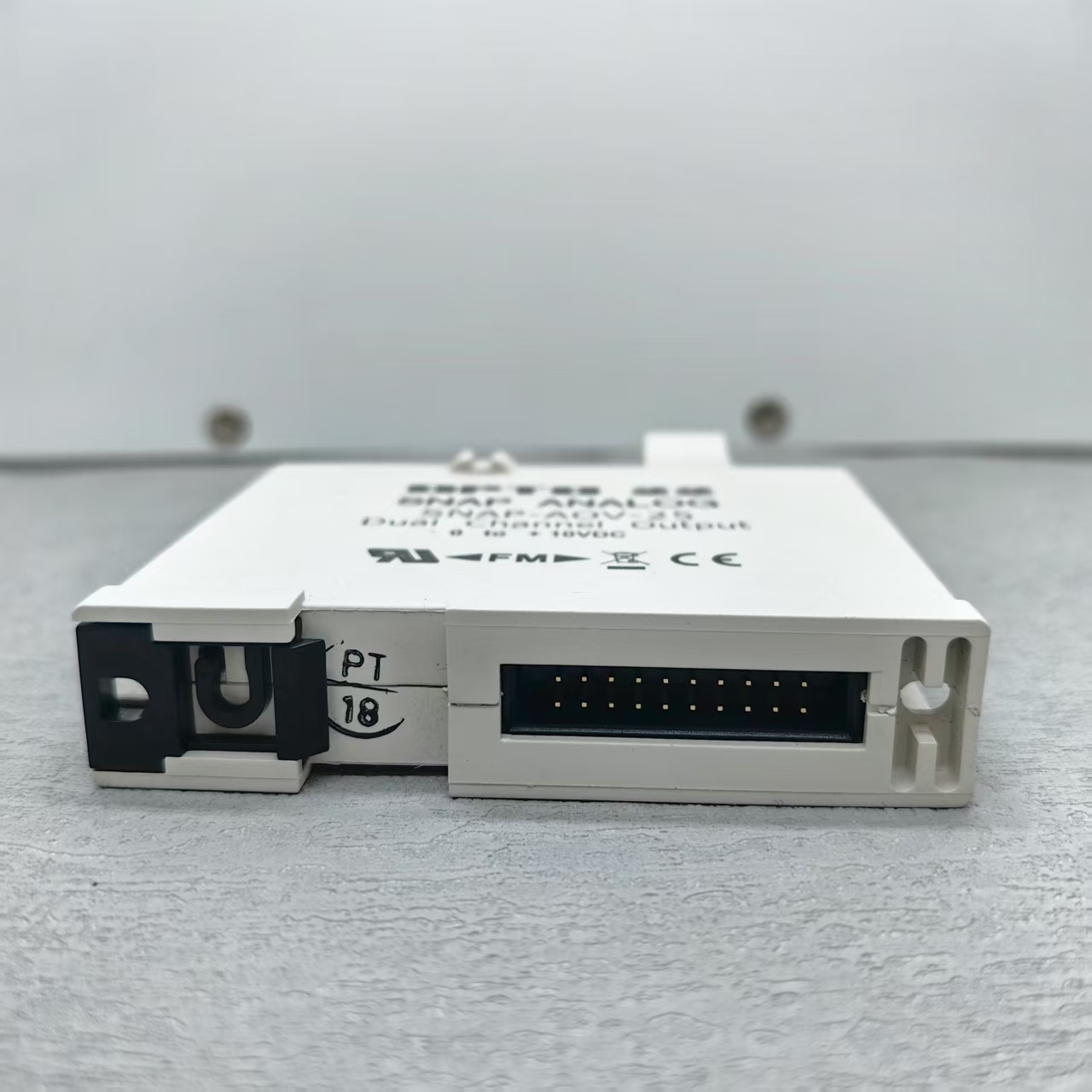

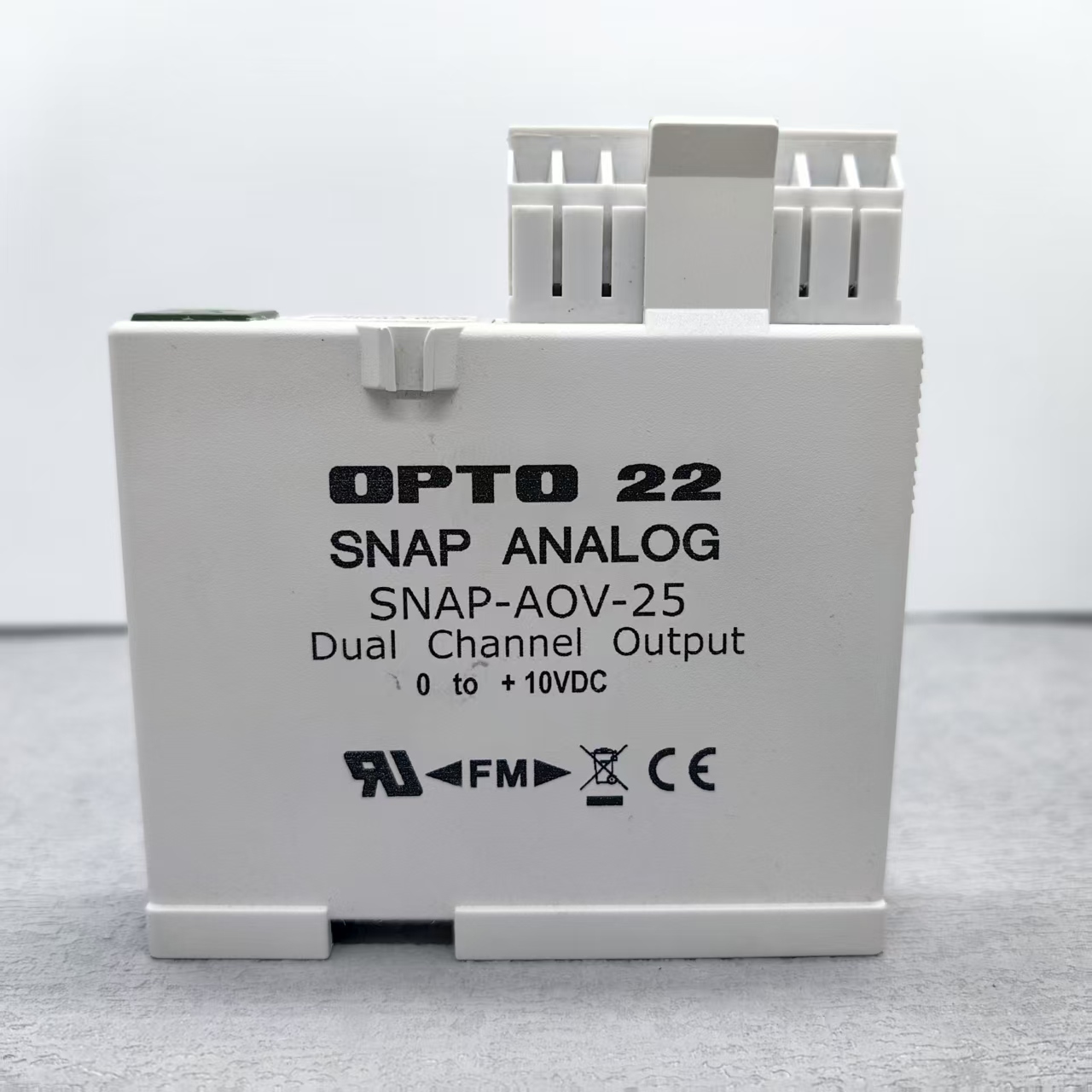

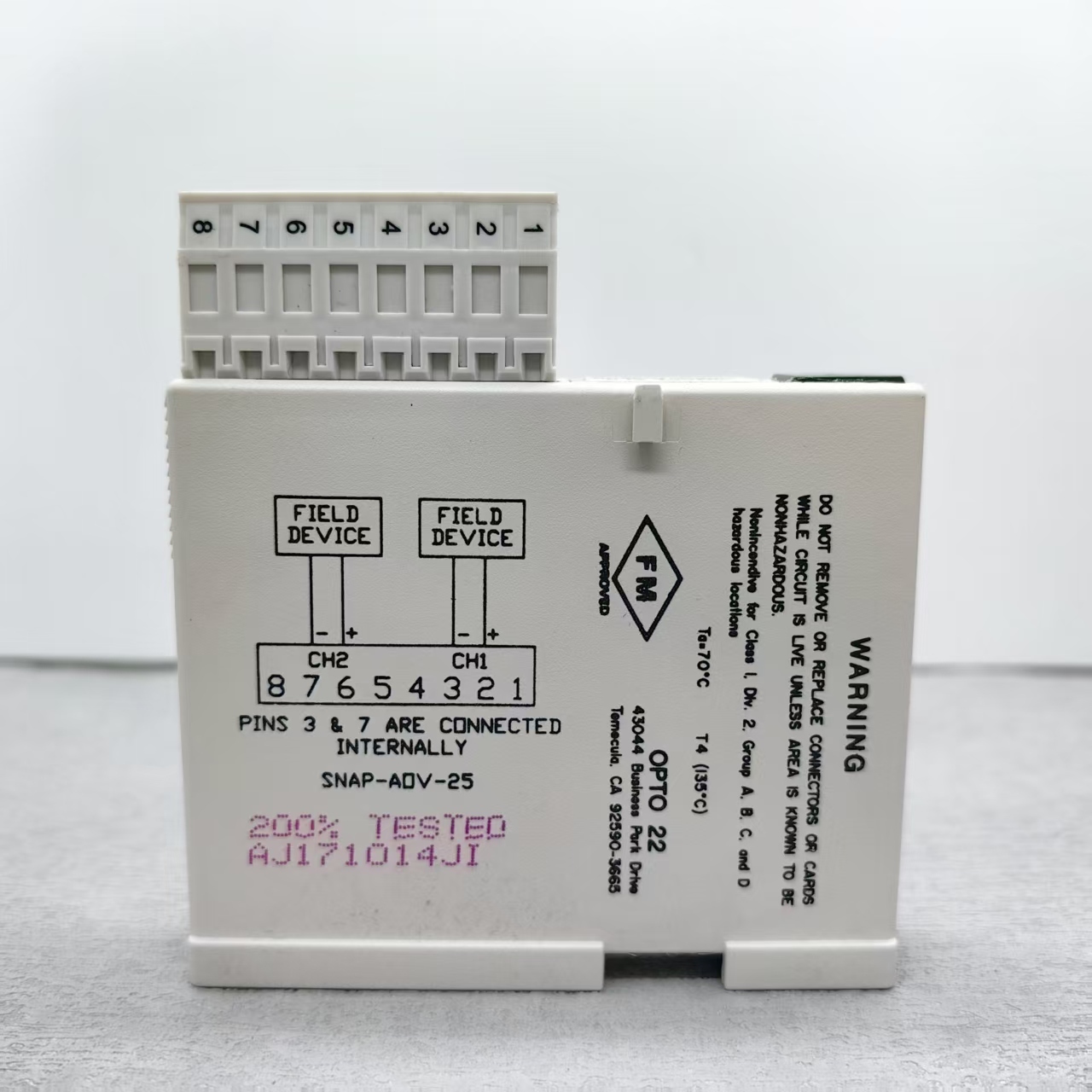

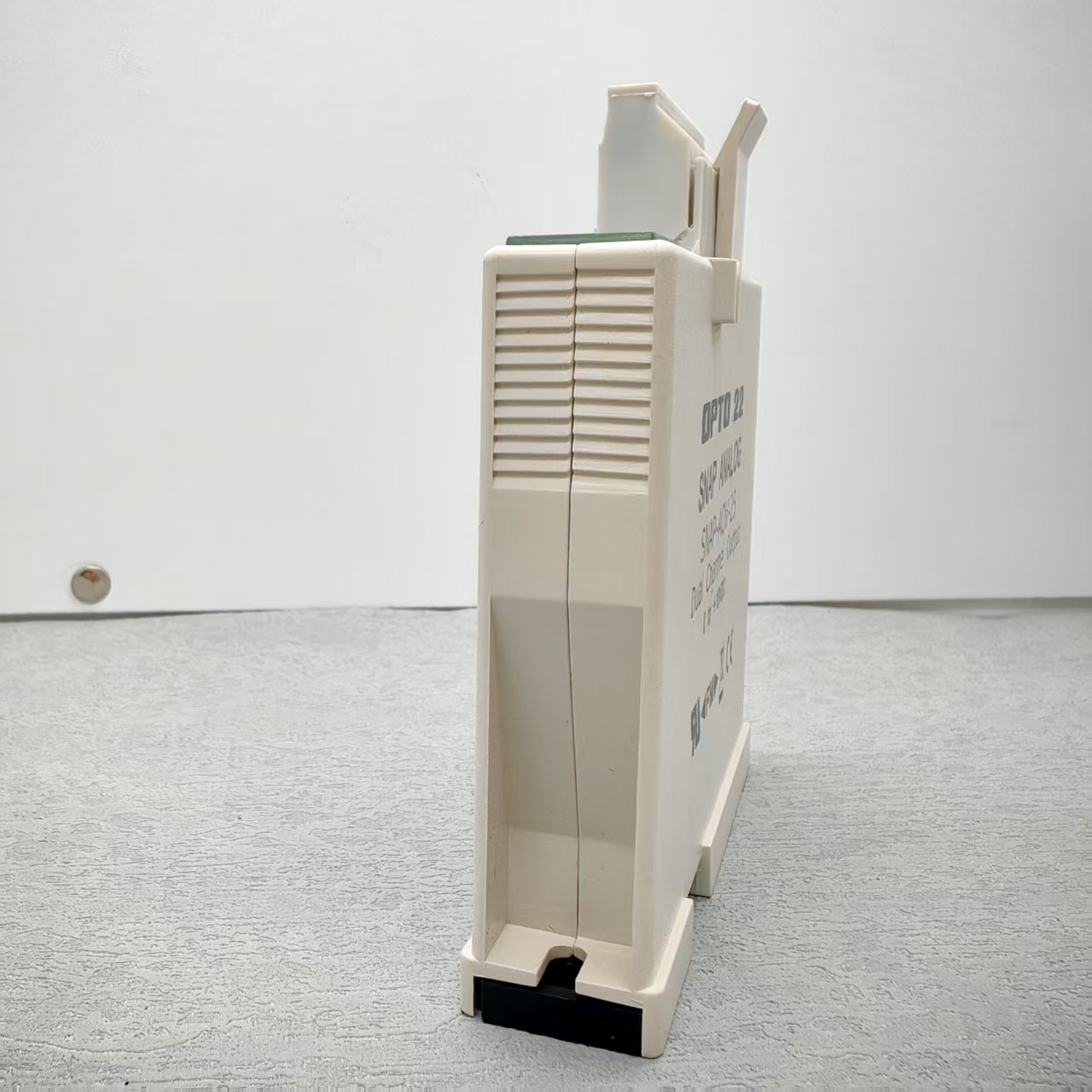

OPTO 22 Module SNAP-AOV-25
$145.00 USD
$180.00 USD
Save $35.00 USD
4529-391
Inventory: 24 remaining available
I/O Modules SNAP 2-Ch 0-10 VDC Analog Voltage Output Module
| Condition: |
New |
Brand: |
OPTO 22 |
| Type: |
Module |
MPN: |
SNAP-AOV-25 |
| Ship Time: |
2-4 working days |
Ship To: |
Worldwide |
| Item / Parameter |
Specification |
| Part Number / Description |
SNAP-AOV-25 — Dual-channel analog voltage output 0 to +10 V DC |
| Input |
12-bit serial data (per channel) |
| Output (per channel) |
0 to +10 V DC (floating) |
| Span |
10 V |
| Resolution |
2.44 mV (≈ 0.024%) |
| Response Time |
99.9% of span / 19.98 V / 3 ms |
| Load Current (nominal) |
5 mA per channel |
| Continuous Short-circuit Output Current |
40 mA per channel |
| Accuracy |
±0.1% of span |
| Gain Temperature Coefficient |
50 ppm/°C |
| Offset Temperature Coefficient |
20 ppm/°C |
| DC Common-Mode Rejection |
> –120 dB |
| AC Common-Mode Rejection |
> –120 dB @ 60 Hz |
| Max. Operating Common-Mode Voltage |
250 V |
| Common-Mode Resistance |
> 1,000 MΩ |
| Isolation |
1500 V (module to field) |
| Power Requirement |
5 V DC (±0.15 V) @ 150 mA |
| Operating Ambient Temperature |
–20 °C to +70 °C |
| Storage Temperature |
–40 °C to +85 °C |
| Humidity |
5-95%, non-condensing |
